Front Right Air Suspension Strut Failure on Land Rover (2005-2012): OE RNB501520 Aftermarket Replacement Guide

Introduction

The Land Rover Range Rover L322 (2005-2012) is globally renowned for its luxurious ride quality and off-road capability, attributes that rely heavily on its complex electronic air suspension (EAS) system. However, as these vehicles age, air suspension failure becomes one of the most common and costly maintenance issues.

For automotive technicians, wholesale distributors, and B2B auto parts buyers, understanding the failure modes of the front air struts is critical. This technical guide provides a deep dive into the front right air suspension strut, specifically OE number RNB501520, analyzing global failure data, common symptoms, root causes, and aftermarket replacement solutions.

Product Identification

Identifying the correct component is the first step in successful suspension repair. OE number RNB501520 refers specifically to the front right air suspension shock strut assembly.

Cross-Reference OE Numbers: RNB000740、LR032563、LR051700、RNB000060、RNB500540、RNB501340、RNB501400、RNB501520.

Product Name: Front Right Air Suspension Strut Assembly / Macpherson Air Spring

Compatible Vehicle Models: Land Rover Range Rover (HSE, Supercharged, Autobiography)

Vehicle Platform: L322

Production Years: 2005–2012

Position: Front Right (Passenger Side on LHD vehicles)

Common Problems & Symptoms

When the OE RNB501520 air strut begins to fail, the vehicle will exhibit several distinct symptoms. Based on global failure analysis from Land Rover technical forums, independent mechanic reports, and specialist suspension rebuilders, the most frequently reported issues include:

Sagging Ride Height: This is the most obvious visual symptom. The vehicle will sit noticeably lower on the front right corner, especially after being parked overnight. In severe cases, the front end may rest completely on the bump stops.

Constant Air Compressor Operation: If the rubber air bladder develops a leak, the EAS air compressor will run continuously in an attempt to maintain the target ride height. This overworked state is noisy and often leads to secondary system failures.

Dashboard Warning Lights: A “Suspension Fault – Normal Height Only” or “Air Suspension Inactive” message will illuminate on the instrument cluster, often accompanied by an audible warning chime.

Deteriorated Ride Quality: A blown internal shock absorber or deflated air spring will result in a harsh, bouncy, or unstable ride, with the vehicle bottoming out over speed bumps and potholes.

Causes of Failure

Global diagnostics and root cause analyses reveal that the failure of the RNB501520 strut is rarely a single-event anomaly; rather, it is a culmination of material fatigue, poor sealing, and harsh environmental factors.

• Rubber Air Bladder Fatigue (Dry Rot): The air spring features a flexible rubber bladder. Over years of continuous expansion, contraction, and friction, the rubber simply loses its elasticity. Micro-cracks develop along the fold of the bladder where it rolls over the piston, eventually splitting into full-scale air leaks.
• Internal Shock Absorber Wear: The central Macpherson strut contains hydraulic fluid and internal seals. Continuous heavy loads and poor road conditions degrade these seals. Once the fluid leaks out, the damping effect is lost, which places excessive physical stress on the air bladder.
• Extreme Environmental Conditions: In colder climates, road salt, moisture, and freezing temperatures accelerate the degradation of the rubber and the corrosion of the lower metal strut mounts. Conversely, extreme heat can dry out the rubber bladder, making it brittle and prone to premature tearing.
• Abrasive Road Debris: Sand, dirt, and grit can accumulate on the lower piston where the air bladder rolls over itself. This creates an abrasive paste that physically wears a hole into the rubber over time.

Installation & Replacement Tips

When sourcing an OE RNB501520 replacement, choosing a high-quality aftermarket auto part is often more cost-effective than purchasing a genuine dealership unit. Many premium aftermarket options offer equal or superior durability through improved rubber compounds and CNC-machined structural components.

Post-Installation Calibration: After installing the new aftermarket air strut, the ride height sensors must be electronically recalibrated to ensure the vehicle sits level and the suspension geometry is correct.

Always Replace in Pairs: It is highly recommended to replace front air struts in pairs (Left and Right). If the front right (RNB501520) has failed due to age and fatigue, the front left (RNB501530) is likely near the end of its service life as well.

Inspect the Air Compressor: A leaking strut significantly overworks the compressor. Check the compressor relay, thermal sensor, and output pressure to ensure it hasn’t suffered thermal damage or burnout caused by the leak.

Check Valve Blocks: Clean and inspect the front valve block assembly. Leaking O-rings in the valve block can cause a pressure drop that mimics a failing air strut.

Safe Depressurization: Always use an OBD2 diagnostic tool to safely depressurize the EAS system before loosening the air lines or removing the top mount bolts.

Conclusion

The RNB501520 front right air strut is a critical point of failure in the Range Rover L322’s air suspension system. By understanding the root causes—ranging from material fatigue to abrasive environmental wear—technicians and B2B auto parts suppliers can better address customer pain points and diagnose issues accurately. Investing in premium aftermarket replacements not only restores the luxury ride quality the L322 is famous for but also prevents cascading secondary failures in expensive components like the main air compressor.

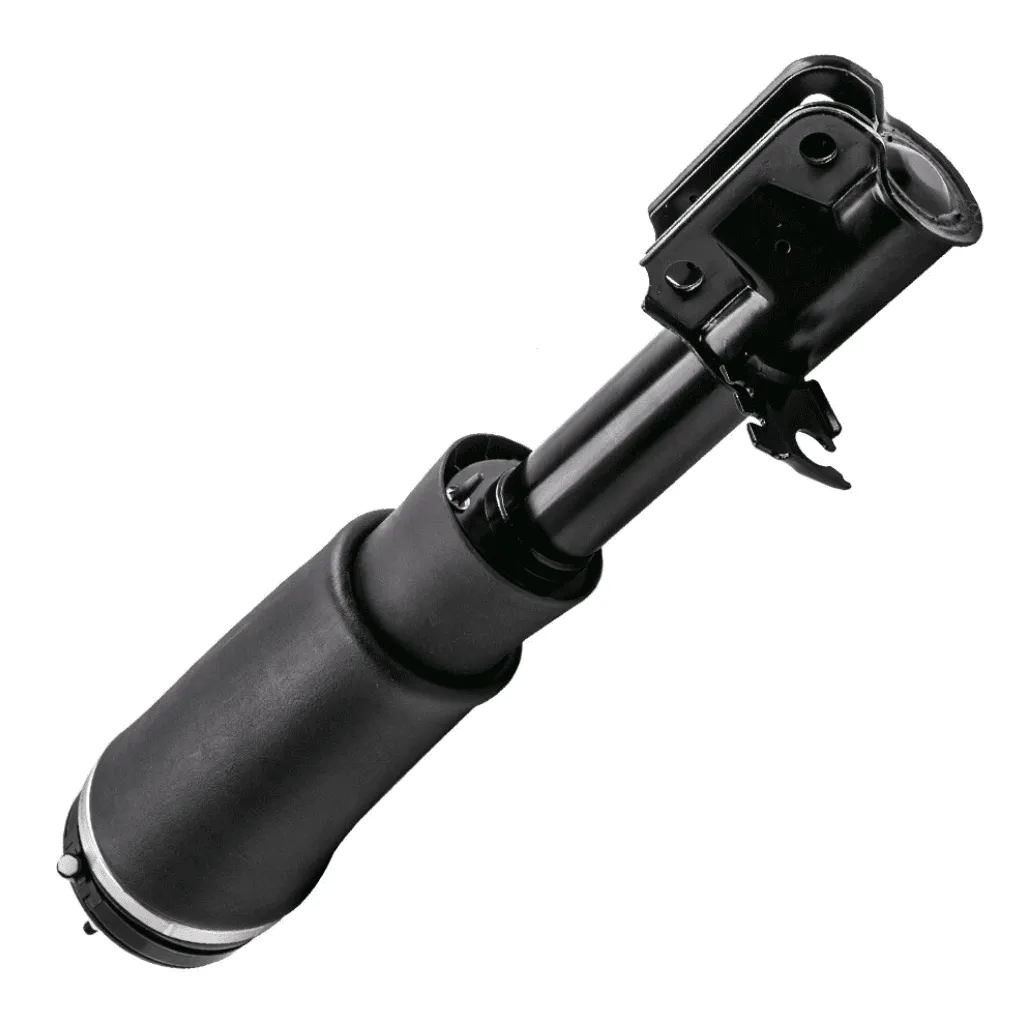

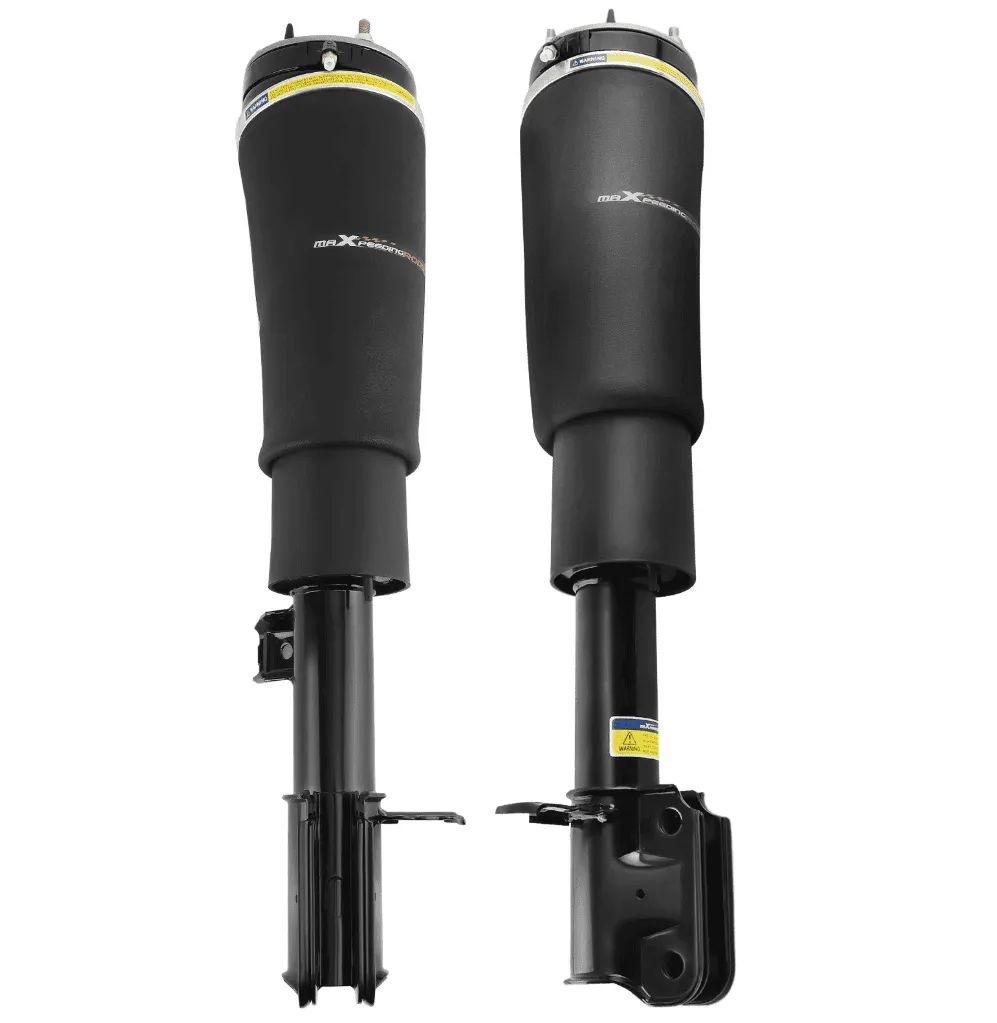

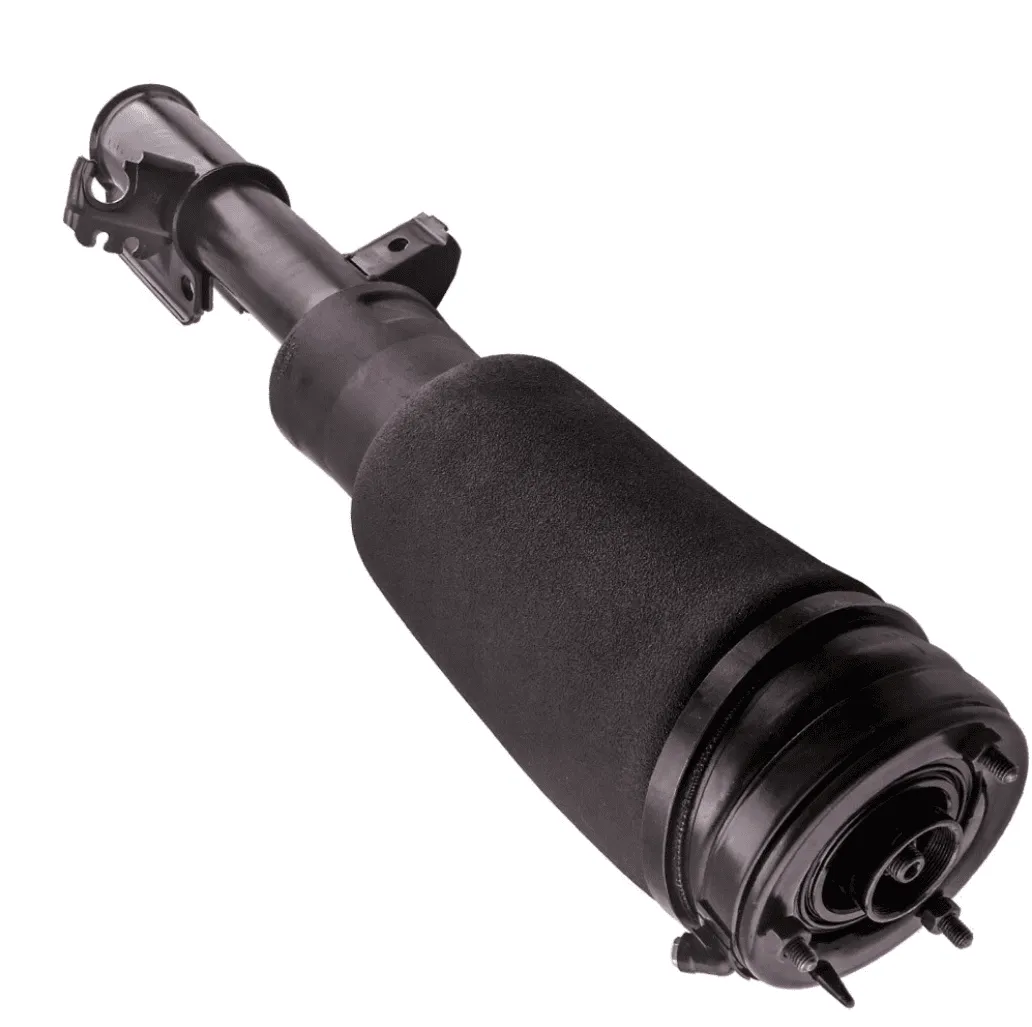

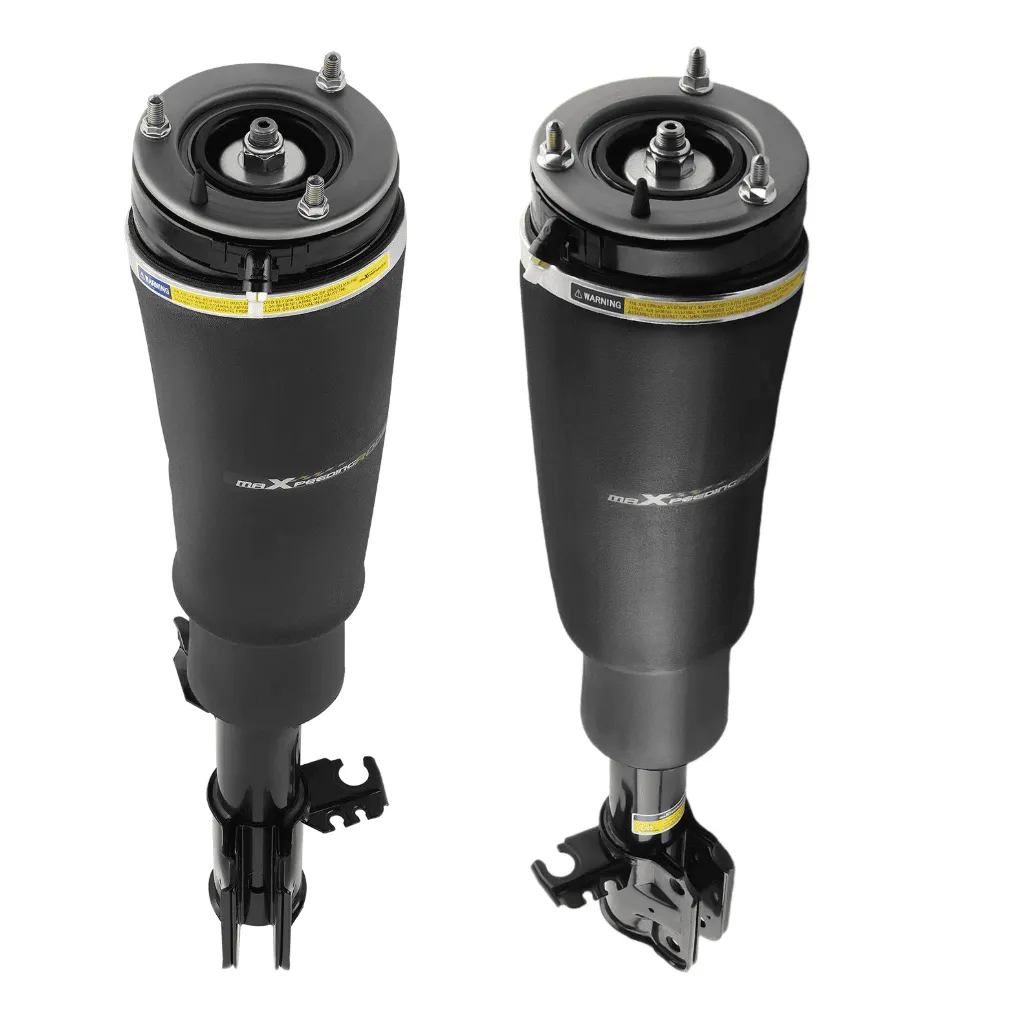

If you want to buy it and please click the below picture
